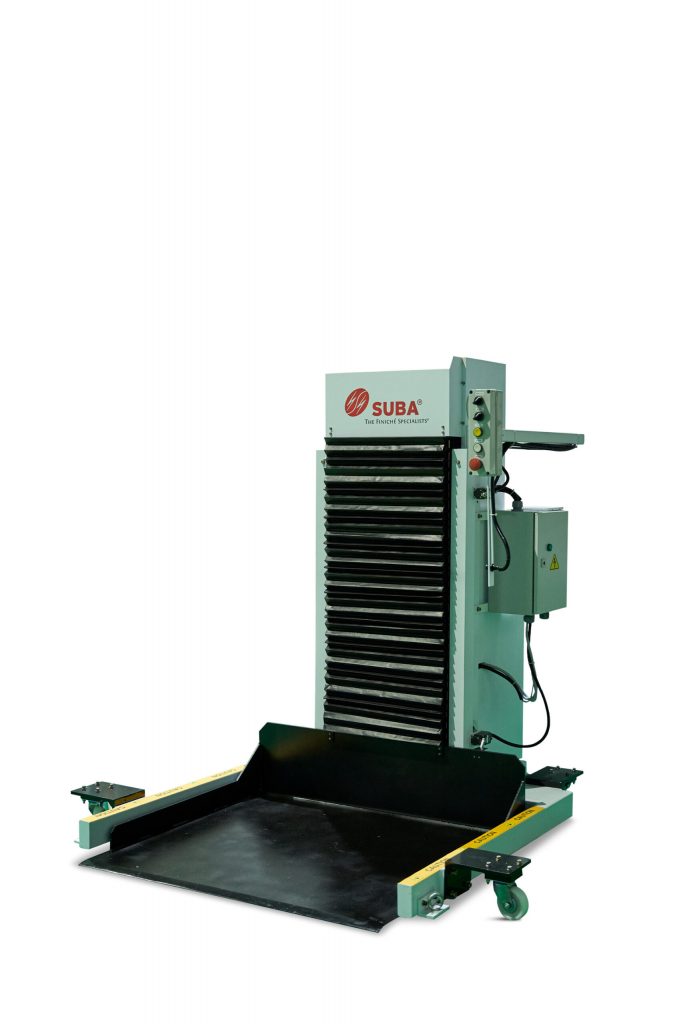

| MODEL | PL1100 |
| Table dimension (L*W) | 1184 x 1000 mm |
| Max. Size of paper (L*W) | 1060 x 760 mm |
| Max. Platform stroke | 900 mm |
| Max. Loading capacity | 1.2 T |
| Power supply mode | Trifásica, 415 V |
| Power | 1.5 Kw |
| Net Weight | 500 Kg |
| Machine Size (L*W*H) | 1670 x1480 x 1800 mm |
Features:
- Adjustable photoelectric sensor control for auto levelling.
- Easy acces for pallet mover to enter the lifter platform.
- Ergonomic design – increases efficiency of operator as the working height remains constant throughout the blanking process.
- Automatic lifting up and down platform movement.
- High production capacity.
- Can be used as a lifting accessory for any machine.
