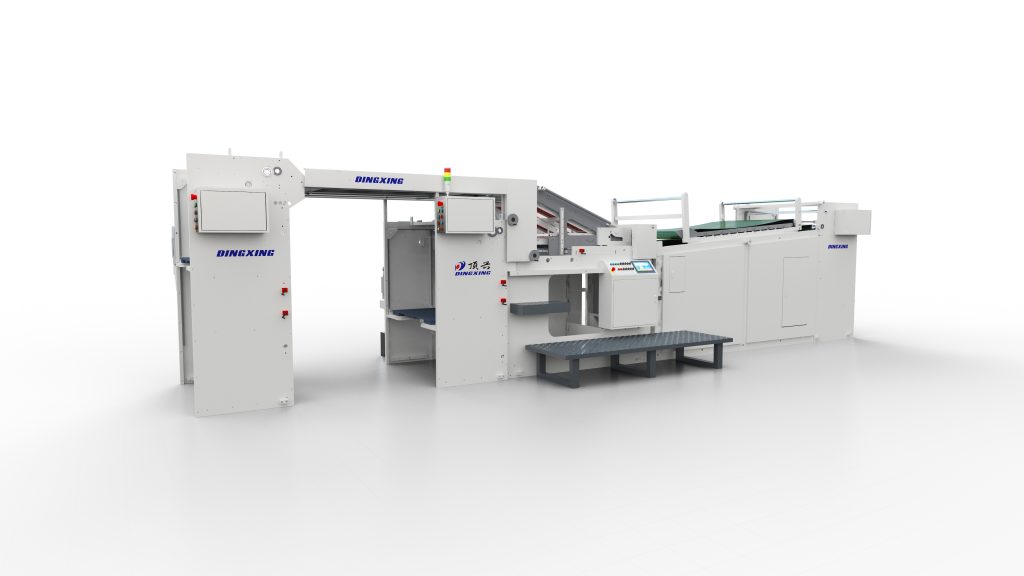

Classics high-speed cardboard laminator

Model DX-800 DX-1207 DX-1210 DX-1410
Max. Paper size 800*700 mm 1200*720 mm 1200*1000 mm 1410*1000 mm
Min. Paper size 297*210 mm 390*270 mm 390*270 mm 450*450 mm
Thickness of top sheet 100-800 g/m2 100-800 g/m2 100-800 g/m2 100-800 g/m2
Thickness of bottom sheet 180-1800 g/m2 180-1800 g/m2 180-1800 g/m2 180-1600 g/m2
Max. speed 150 pcs/min 150 pcs/min 105 pcs/min 105 pcs/min
Accuracy ±0.5 mm ±0.5 mm ±0.5 mm ±0.5 mm
Machine weight 6000 kg 7000 kg 7000 Kg 7500 Kg
Dimension (L*W*H) 8900*2140*2180 mm 8900*2470*2180 mm 8900*2470*2180 mm 10250*2770*2180mm
Power supply AC380/50Hz/16 Kw AC380/50Hz/16 Kw AC380/50Hz/16 Kw AC380/50Hz/16 Kw
Operating space 3*12 m 3*12 m 3*12 m 3*12 m

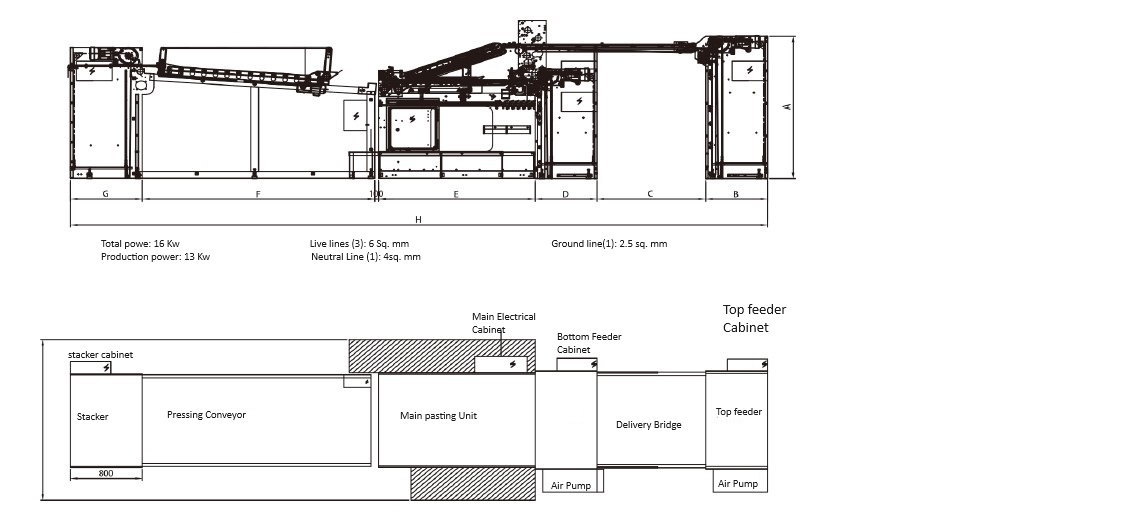

Model A B C D E F G H I
DX-800 2180 800 1400 800 2000 3000 800 8900 2140
DX-1207 2180 800 1400 800 2000 3000 800 8900 2470
DX-1210 2180 800 1400 800 2000 3000 800 8900 2470
DX-1410 2180 800 2656 800 2067 3000 927 10250 2770
