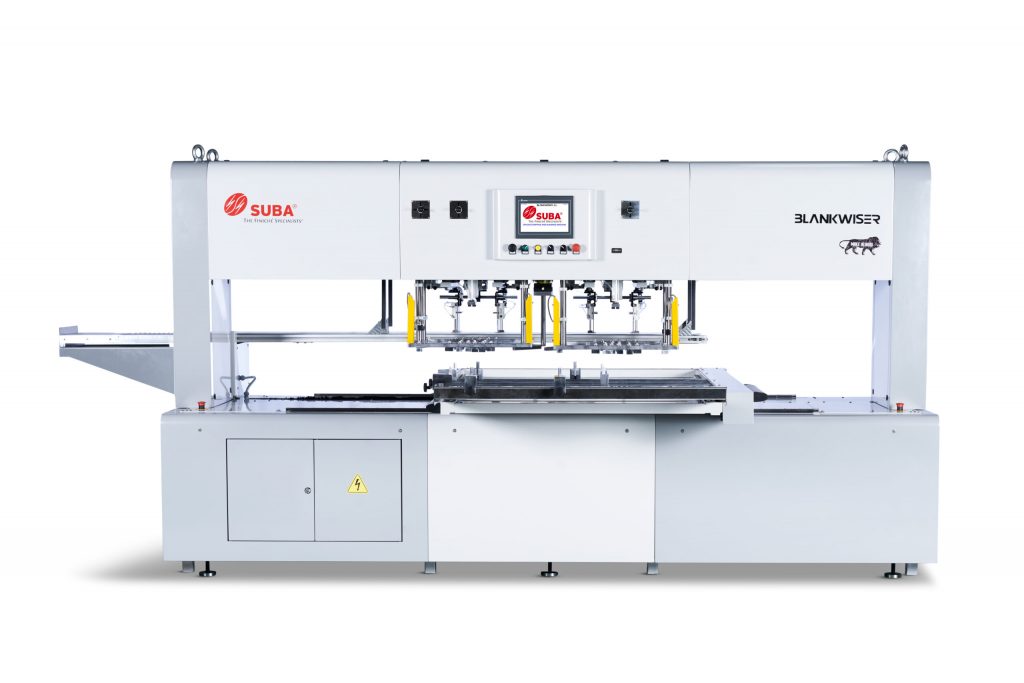

| MODEL : BLANKWISER | |
| Max. Sheet size | 1060 × 1060 mm |
| Min. Sheet size | 300 × 300 mm |
| Max. Blank size | 350 x 468 mm |
| Min. Blank size | 30×30 mm |
| *Optional: RPA – Robotic pickup arm with conveyor | Min. 50 x 50
Max. 250 x 280 |
| *Opcional: W – Window hole remover | Min. 15 x 15 mm
Max. 100 x 150 mm |
| Pile of Paper high | 50 – 85 mm |
| Strokes /min.
*Output depends on shet thickness, no. of ups / cartón size etc.. |
15-20 |
| Max. Work stress | 2.5 tn |
| Power | 10 KW |
| Compressed air pressure requirement
Compressed air pressure requirement With conveyor |
6 Bar
8 Bar |
| Machine size (L*W*H)
Machine size with conveyor (L*W*H) |
2700x3400x2200 mm
2700x4400x2200 mm |
| Machine with working suggested área
Machine with working suggested area With conveyor |
4400x4800x2500 mm
4400x5400x2500 mm |
| Weight
Weight with conveyor |
2000 kg
2500 Kg |
| Make ready time *subject to operator skill and job type) | 15 to 30 min |
