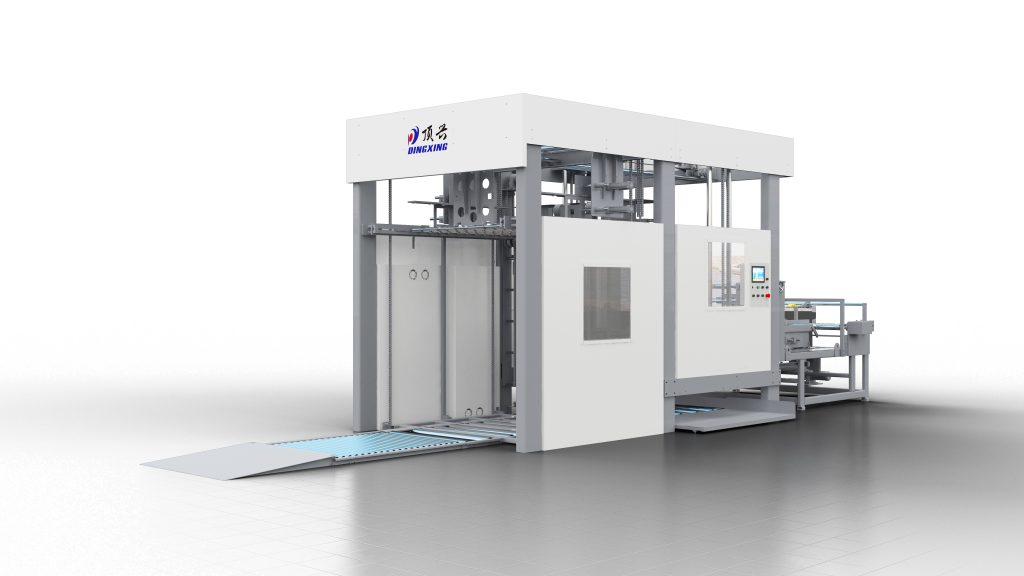

Automatic Flip Flop stacker

Model FZ-1180 FZ-1450 FZ-1650 FZ2100
Length 7100 mm 7100 mm 7700 mm 7700 mm
width 2470 mm 2720 mm 2720 mm 3220 mm
Height 3005 mm 3005 mm 3005 mm 3005 mm
Maximum Size 1180*1180 mm 1450*1450 mm 16650*1650 mm 2100*2100 mm
Minimum Size 500*500 mm 500*500 mm 600*600 mm 600*600 mm
Power 9Kw 9Kw 9Kw 9Kw
  • Cooperate with the laminating machine to carry out automatic paper collection operation and stack the laminated paper according to the specific quantity.
  • It has the functions of intermittent flipping, flip and flop stacking and neat stacking.
  • Replace manual delivery, minimize labor intensity and improve work efficiency.
  • The paper can be collected one forward and one reverse.
  • Each delivery mode is thickness mode.
  • The paper is automatically ejected after receiving the paper.
  • Using man-machine interface control.
